Wanmax Racing
124.35mm Ultra-Thick Single-Pass Core B58TU Max Intake Manifold Charge Air Cooler with Billet Fuel Rail For BMW G20 M340i Toyota Supra A90 A91
$1,720.00
In Stock
Pre-Order
Sold out
Couldn't load pickup availability
CODE: B58TU Gen 2 Max
Categories: Intake Manifold
100% ORIGINAL AND QUALITY
24 MONTHS GUARANTEE
- Description
- Shipping and Refund
- Reviews
DESCRIPTION
124.35mm Ultra-Thick Single-Pass Core Design, Maximize Heat Dissipation For High-Horsepower B58TU Gen2 Builds.

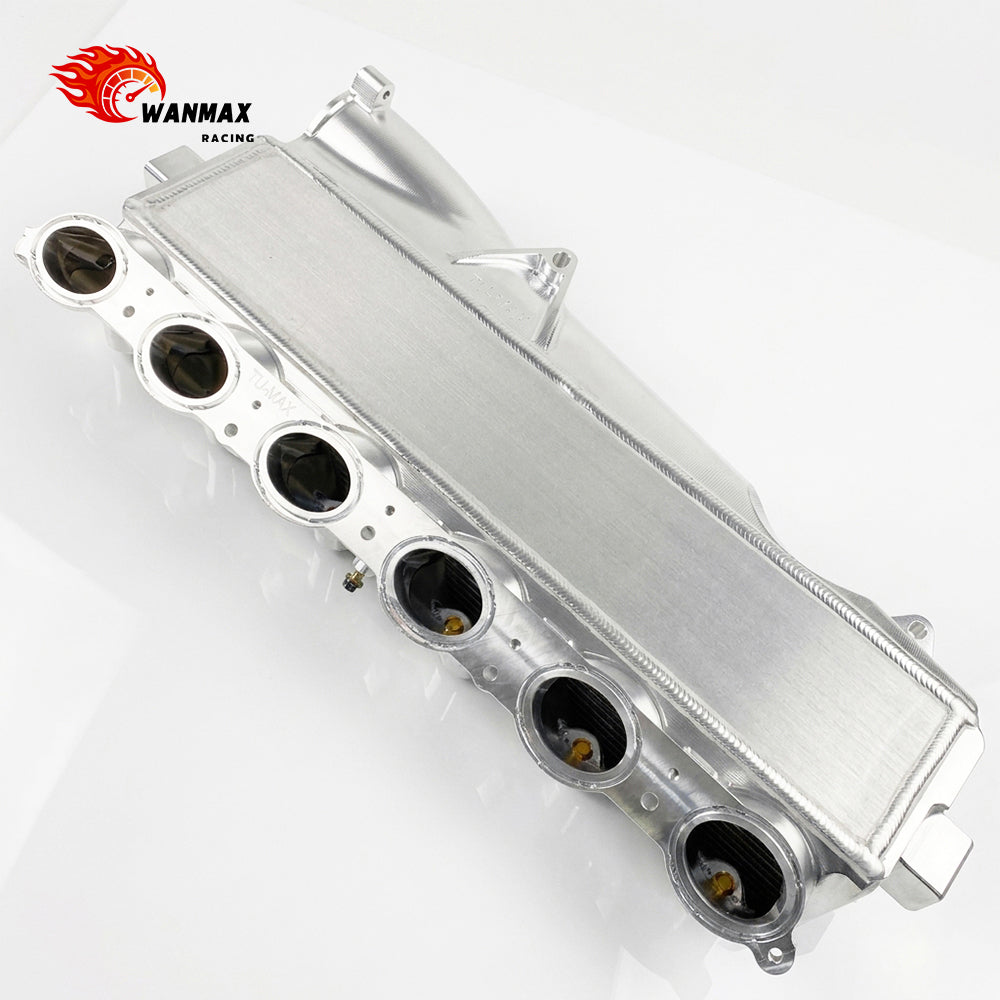

This semi-cast intake manifold features a massive single-pass intercooler core to eliminate heat soak, optimized for 1000+HP racing applications. Gravity cast A356-T6 aluminum plenum delivers smooth internal airflow paths, all critical sealing surfaces are precision CNC machined for leak-free assembly.
Comes equipped with CNC billet fuel rail ready for 6-port auxiliary port injection. Ideal for E85, race fuel and water-methanol setups. Fully retains factory sensor positions and coolant routing for direct bolt-on fitment without chassis cutting.
VEHICLE FITMENT
Toyota GR Supra
- Toyota GR Supra A90 / A91 — 2020–Present (3.0L L6 Turbo B58TU Gen2)
BMW G-Chassis B58TU Gen2
- BMW G20 M340i / M340i xDrive — 2019–Present
- BMW G42 M240i / M240i xDrive — 2021–Present
- BMW G22/G23/G26 M440i / M440i xDrive — 2020–Present
- BMW G29 Z4 M40i — 2019–Present
- BMW G01 X3 M40i / G02 X4 M40i — 2020–2024 (B58TU1 High Output)
- BMW G30 540i / G11 740i Series — 2020–2023 (B58TU1 Equipped Models)
NOT for Gen 1 B58 engines: Does NOT fit older F-Chassis models like F30 340i, F22 M240i, or F20 M140i. (Their throttle bodies and ports are completely different).
NOT for Gen 3 B58TU2 engines: Does NOT fit the latest 2025/2026+ mild-hybrid configurations that feature factory dual fuel injection systems.
KEY FEATURES

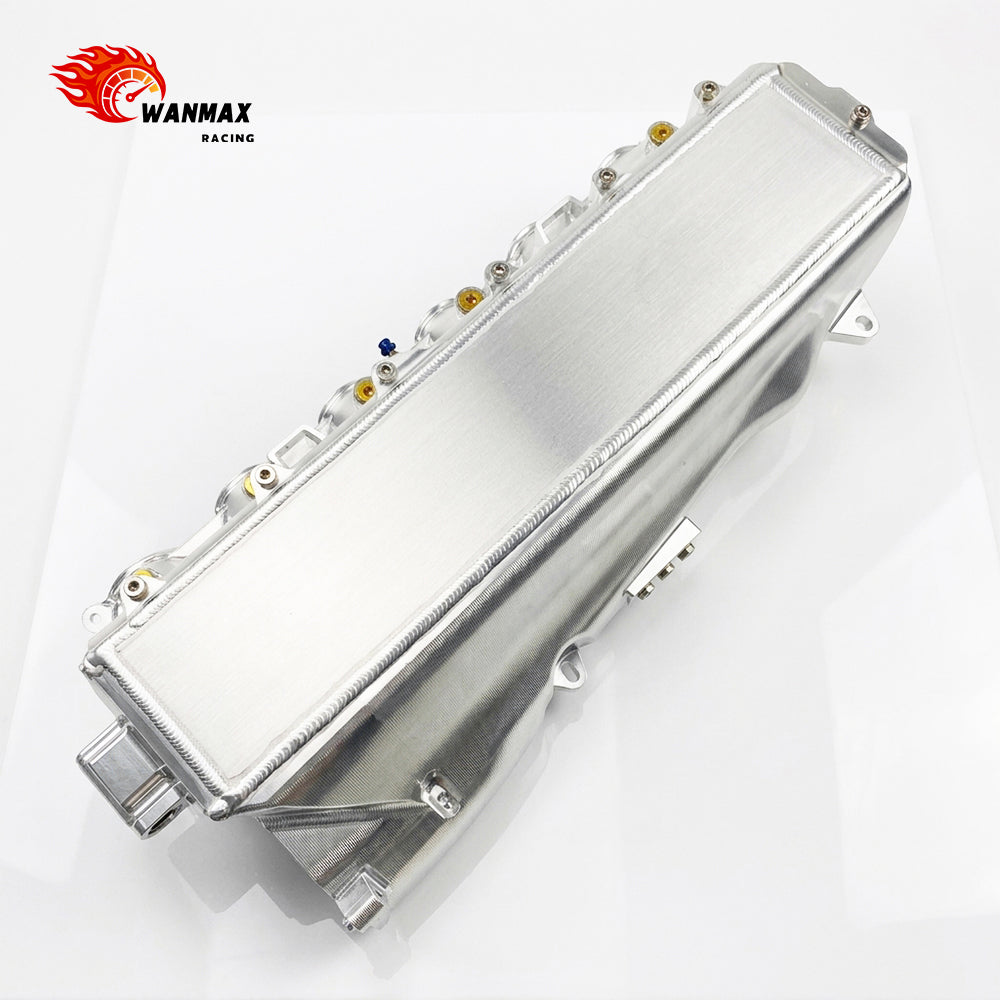

- 124.35mm Ultra-Thick Single-Pass Intercooler Core: Massive cooling core suppresses heat soak, built for 1000+HP extreme racing builds. Single-pass layout minimizes coolant flow resistance for faster heat exchange and rapid IAT recovery.

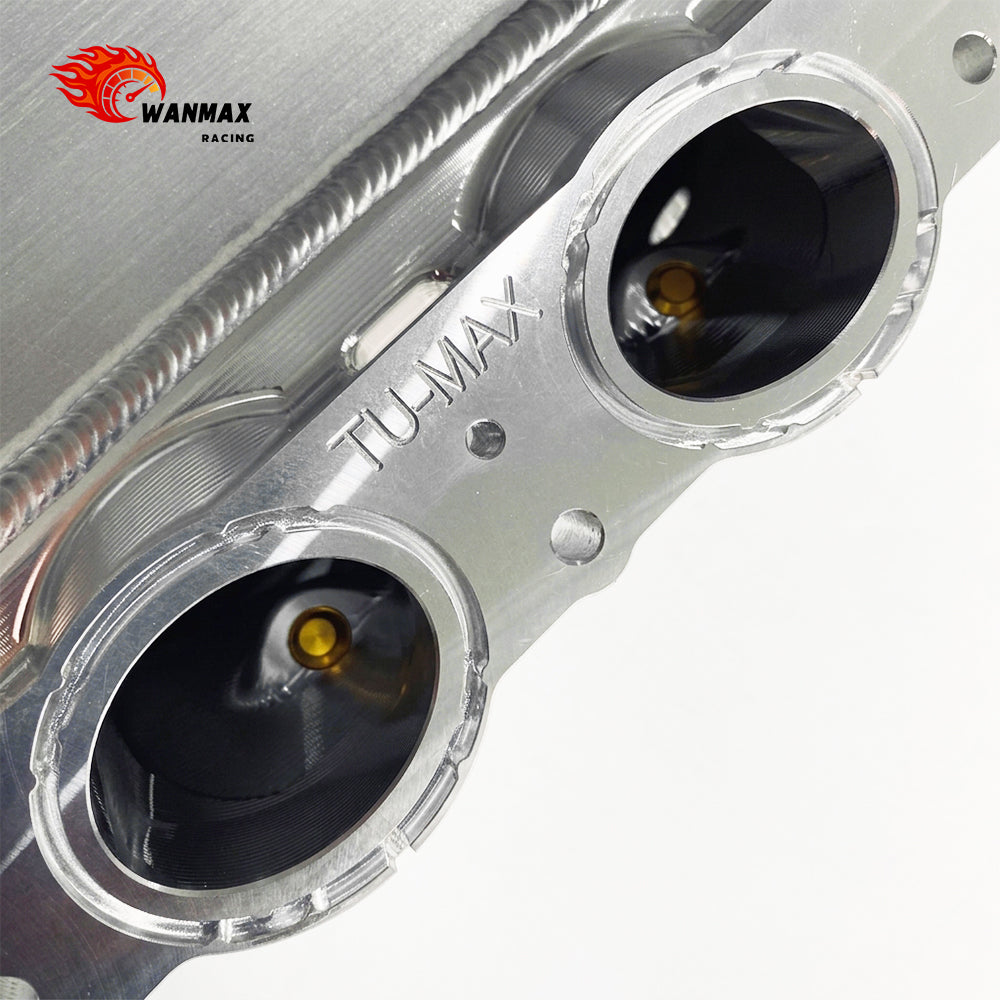

- Premium Semi-Cast & CNC Construction: A356-T6 gravity cast aluminum plenum creates smooth aerodynamic internal runners. All flanges, throttle body ports and mating surfaces are precision CNC machined for reliable leak-free sealing.

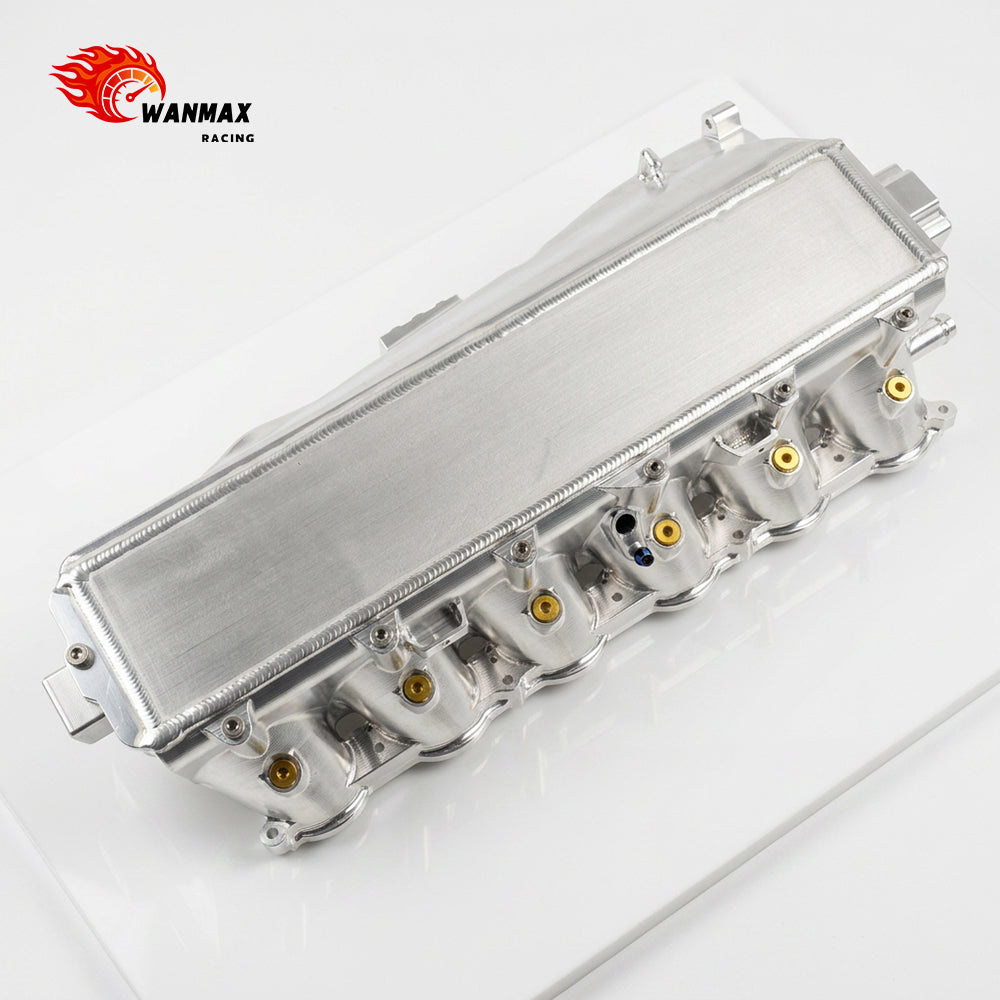

- 6-Port Auxiliary Port Injection Ready: Pre-machined injector ports paired with high-flow billet fuel rail, supports E85, race gas and water-methanol injection without extra spacer plates.
- Direct Bolt-On OEM Layout: Matches factory sensor mounting points and low-temperature cooling loop, no wiring modification or body cutting required.
- Full Complete Hardware Kit: All gaskets, reinforced silicone hoses, viton o-rings, fuel rail hardware and stainless steel installation fasteners included.
TECH SPECIFICATIONS
- Main Material: A356-T6 Gravity Cast Aluminum Plenum
- Flange & Fuel Rail: 6061-T6 CNC Billet Aluminum
- Intercooler Core: 124.35mm Single-Pass Water-To-Air Bar & Plate Core
- Engine Compatibility: B58TU Gen2 (B58B30O1)
- Max Tuning Capacity: Rated for 1000+ HP racing builds
- Installation: Direct Bolt-On, retains all factory sensors
- Cooling Type: Integrated Air-To-Water Charge Cooler

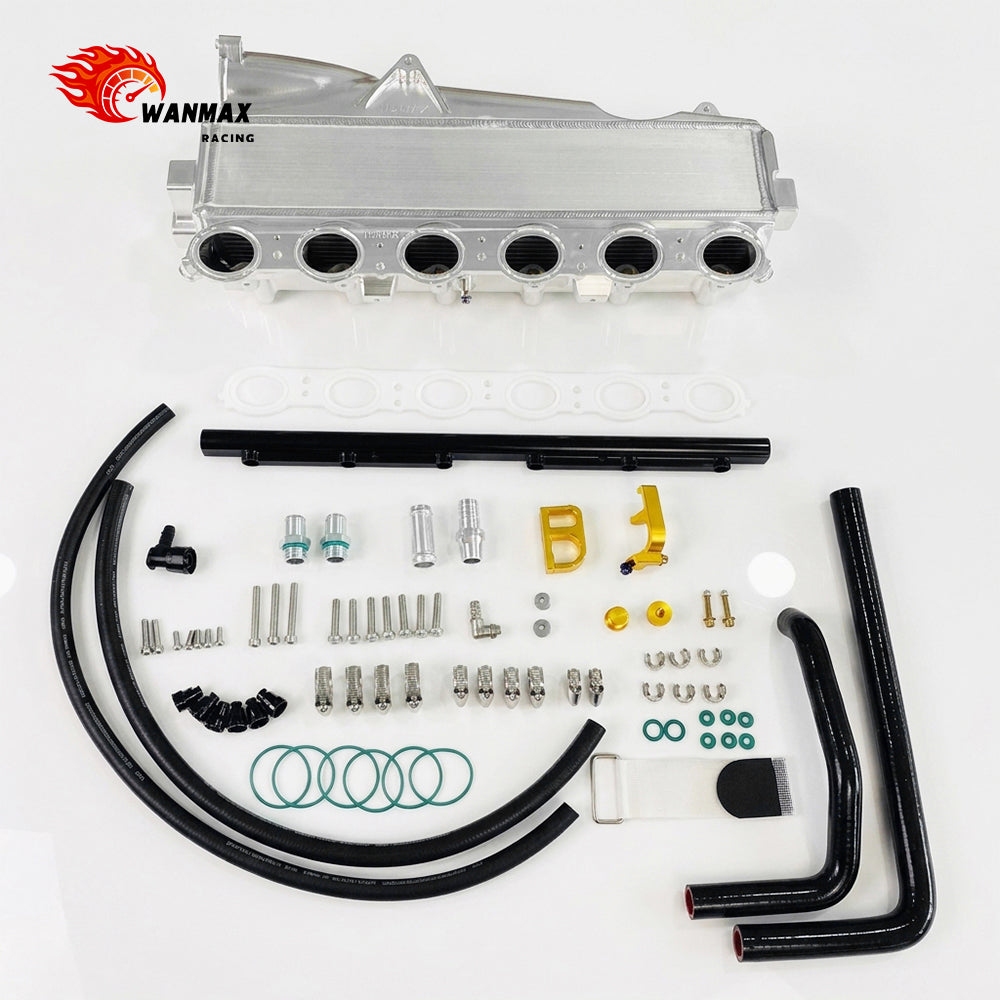

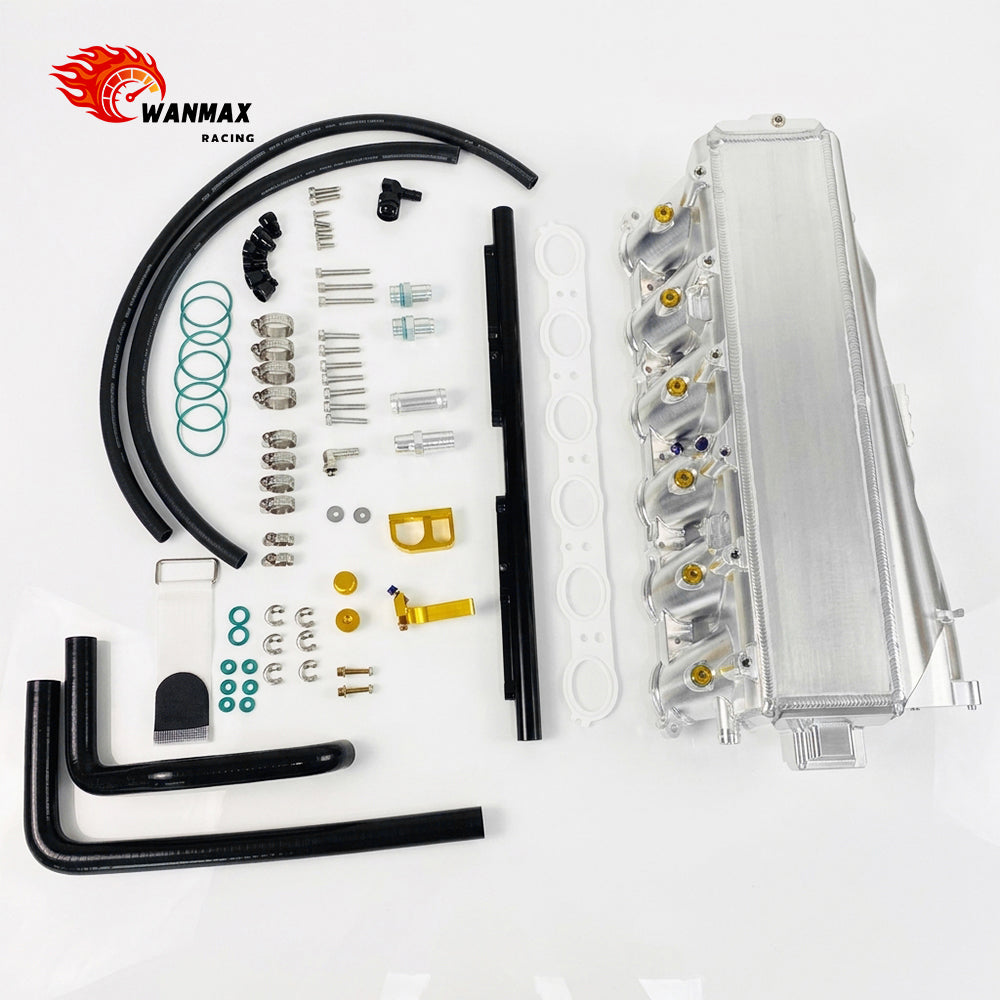

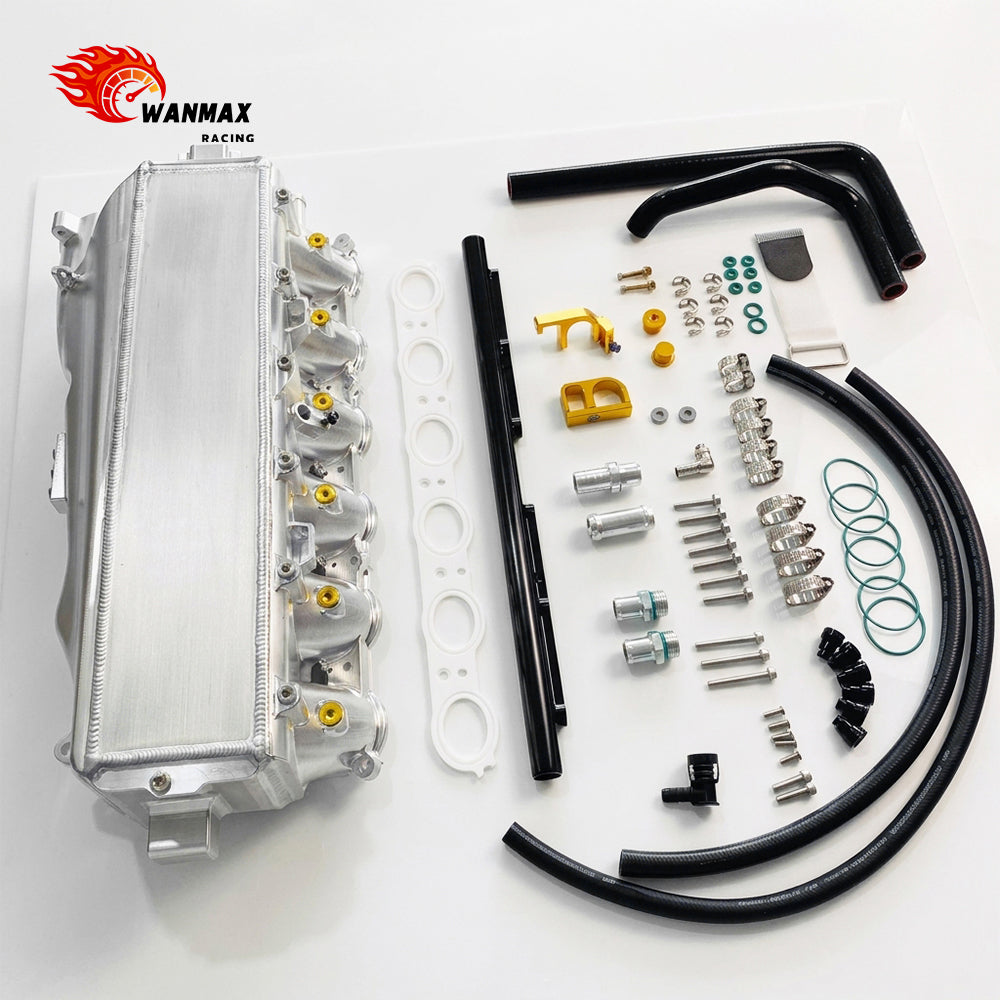

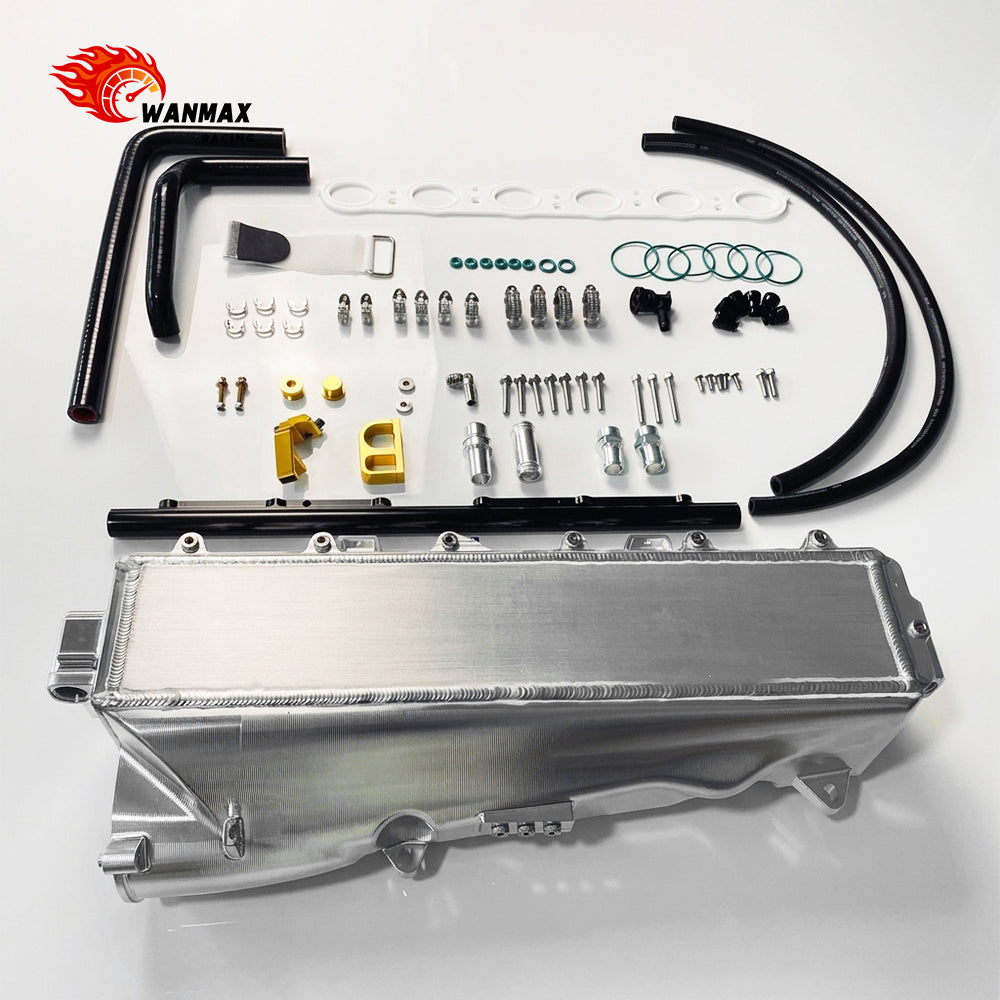

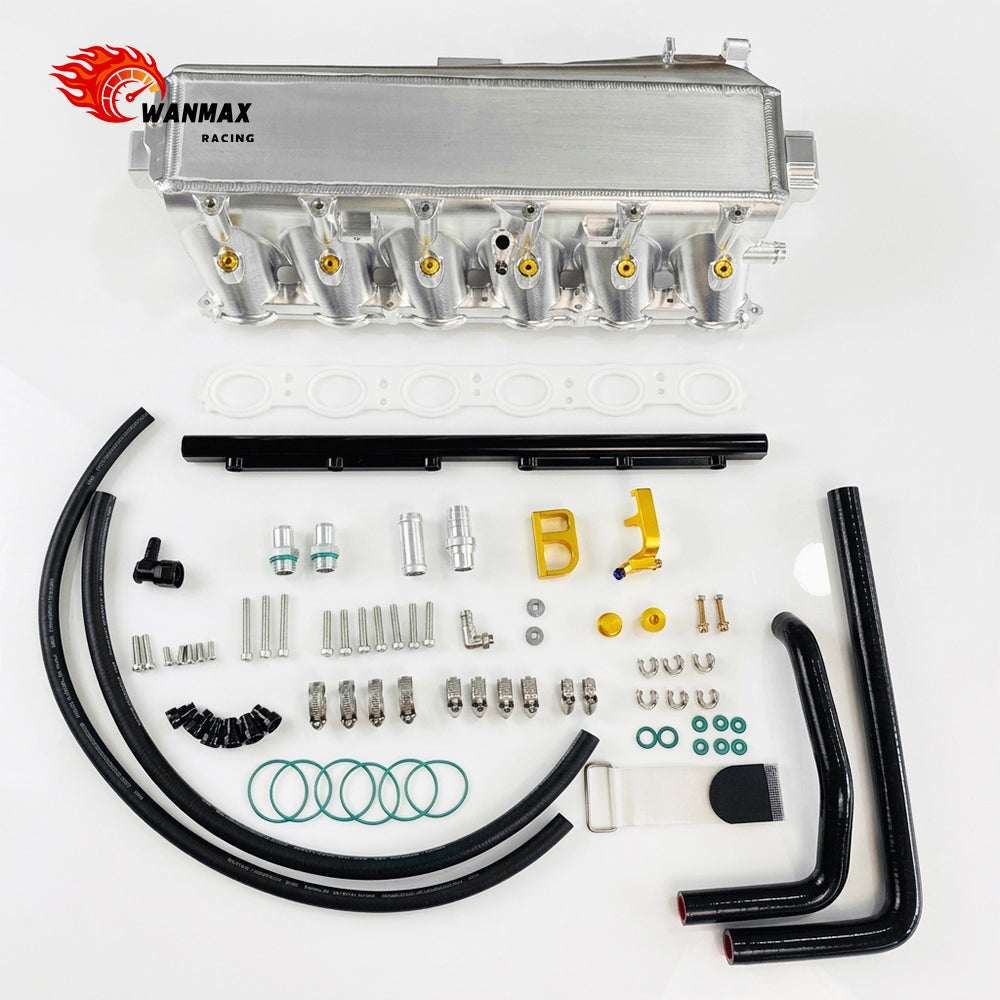

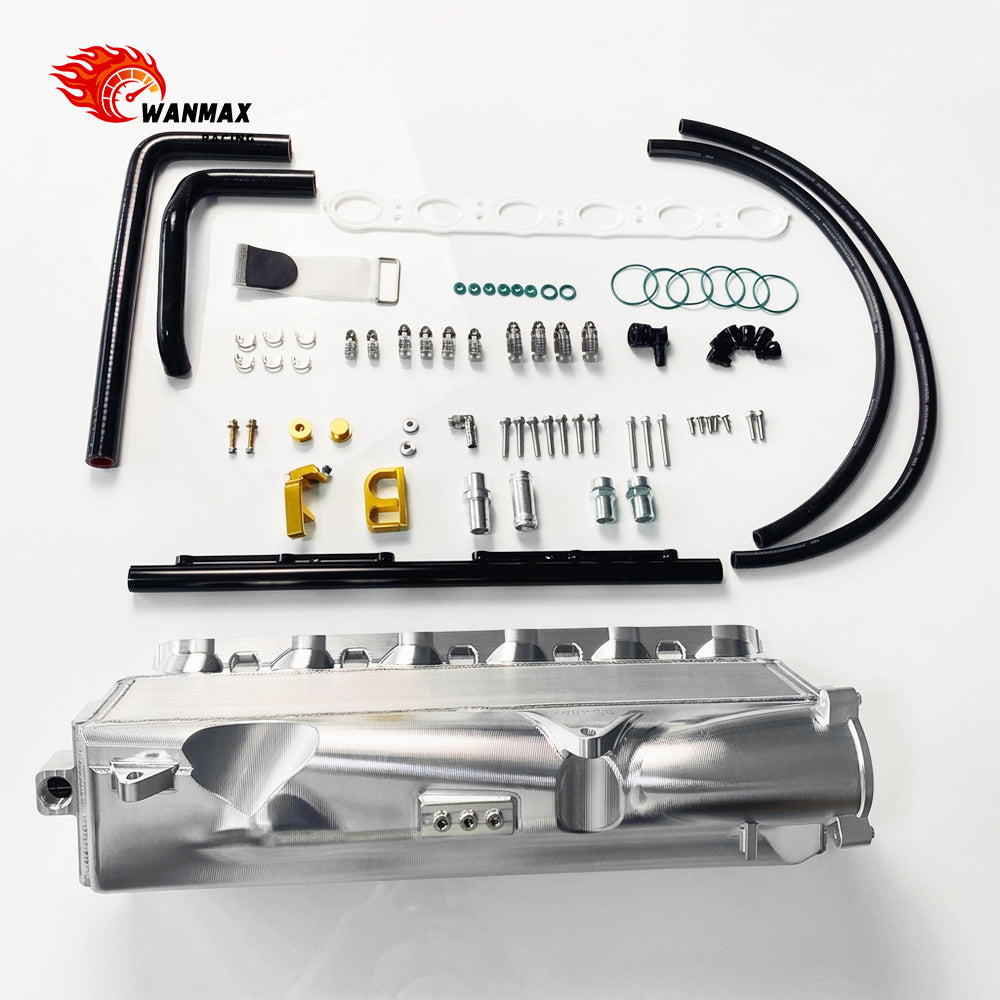

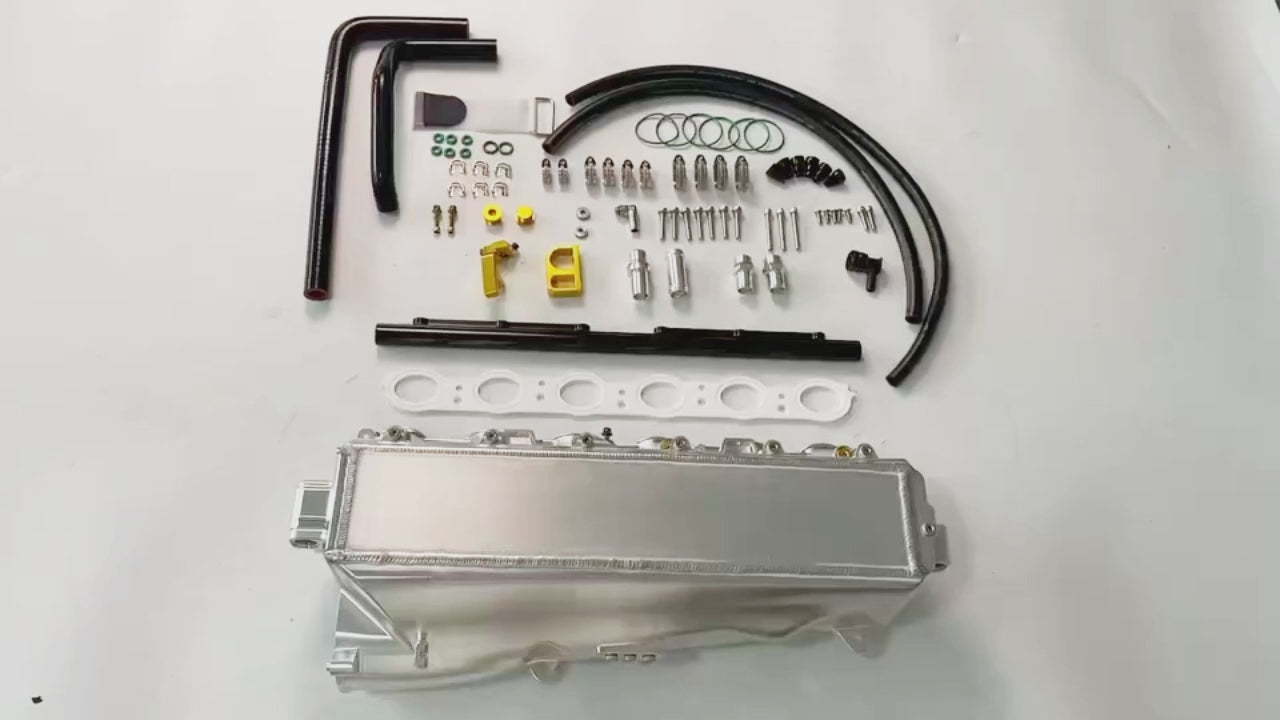

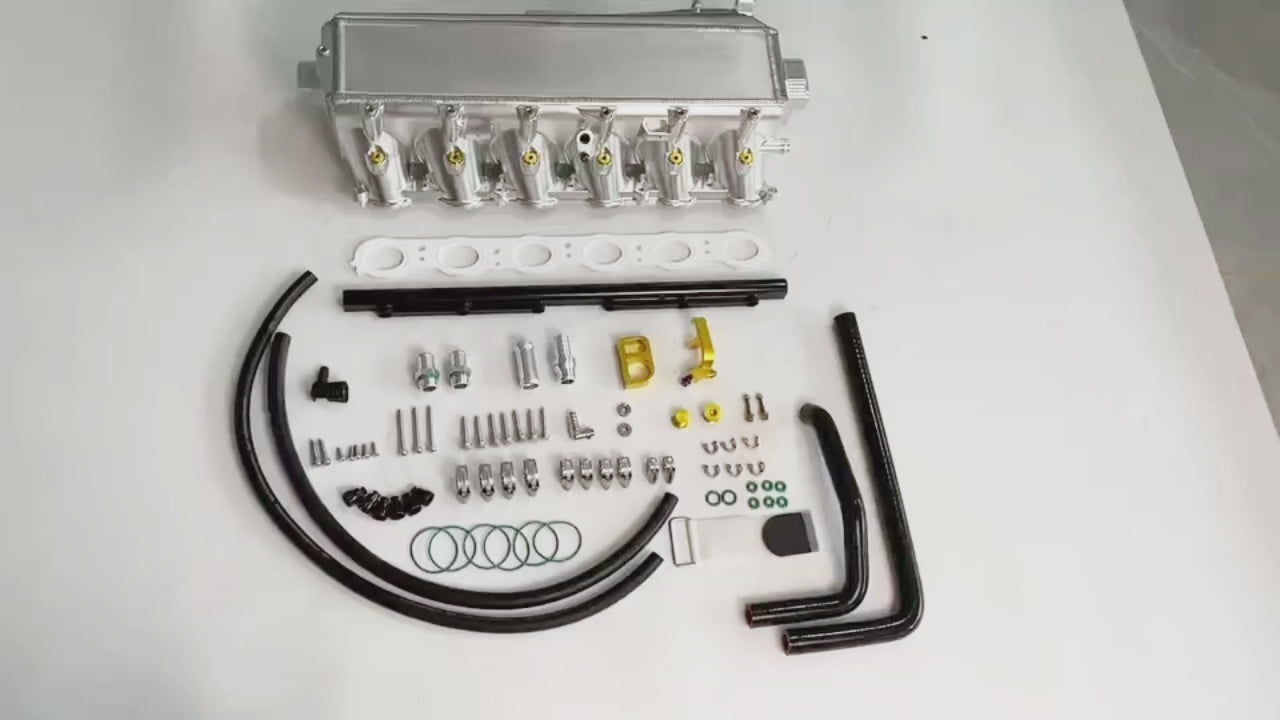

WHAT'S IN THE BOX
- 1x Semi-Cast Aluminum Integrated Water-To-Air Intercooler Intake Manifold
- 1x CNC-Machined Billet High-Flow Fuel Rail (Auxiliary Port Injection)
- 1x Intake Manifold Flange Composite Gasket
- 2x Pre-Bent Reinforced Silicone Coolant Hoses
- 3x Fuel Vapor & Vacuum Silicone Hoses
- Fuel Rail Support Brackets, Adapters & End Block-off Caps
- Full Set Green Viton O-Ring Seals
- Stainless Steel Hose Clamps
- Complete Grade 10.9 Stainless Steel Installation Hardware Kit
INSTALLATION CRITICAL NOTES
- Inspect all green Viton O-rings and apply light assembly lubricant before installation to avoid pinching and leakage.
- If running stock Stage1/Stage2 tuning, install included block-off caps to seal secondary injector ports and prevent boost/vacuum leaks.
- Complete full air bleeding procedure for low-temperature cooling loop after installation to eliminate trapped air inside the large cooling core.
- Custom ECU tuning is required when activating auxiliary port injection. Professional motorsport shop installation strongly recommended.
FREQUENTLY ASKED QUESTIONS
Q1: What advantages does the 124.35mm Single-Pass core have over dual-pass manifolds?
A: Traditional dual-pass designs create coolant flow restrictions. Single-pass layout delivers minimal fluid resistance, allowing coolant to circulate at maximum pump speed. The thick 124.35mm core enables rapid heat removal, preventing power drop during sustained high-load driving and drag racing.
Q2: Will this manifold trigger a check engine light?
A: No. Developed based on OEM B58TU layout. All TMAP sensors and vacuum lines fit original positions without modifying factory wiring harnesses.
Q3: Can it fit B58 Gen1 or B58TU2 engines?
A: No. Only direct fit for Gen2 B58TU platforms. It cannot be installed on F-chassis Gen1 or 2025+ mild hybrid B58TU2 engines.
Q4: Is custom branding available for bulk wholesale buyers?A: Yes. We support custom laser logo engraving, customized anodized fuel rail colors and neutral bulk packaging. Contact us for MOQ and wholesale terms.
