DESCRIPTION

KEY FEATURES

• 3-Mode Smart Control: Includes an ergonomic wireless remote featuring dedicated buttons for ON (Open/Loud), OFF (Closed/Quiet), and AUTO settings for dynamic sound customization.
• Plug-and-Play Power: Powered directly via a standard 12V vehicle cigarette lighter adapter, eliminating the need for complicated fuse box tapping or direct battery wiring.
• Heavy-Duty Waterproof Connectors: The output wire harness features professional-grade, snap-lock waterproof plugs that resist under-chassis moisture, dirt, and heat.
• Universal Component Match: Universally compatible with most 12V electric exhaust cutout valves, bypass motors, and valved mufflers on the market.
• Compact & Rugged Housing: The lightweight, durable black control box is designed with integrated mounting tabs for easy zip-tie or screw fixation inside the cabin or trunk.

TECH SPECIFICATIONS

• Brand: WANMAX RACING
• Product Type: Wireless Remote Control Box Kit for Electric Exhaust Valve
• Operating Voltage: 12V DC
• Power Connection: Male Cigarette Lighter Adapter (with built-in fuse)
• Remote Control Signal: Wireless Radio Frequency (RF)
• Remote Functions: OFF / ON / AUTO
• Harness Connection: Multi-pin Waterproof Snap-Lock Plug
• Fitment: Universal compatibility with 12V valve motor actuators

VEHICLE FITMENT

• Universal 12V Application: Compatible with any car, truck, SUV, or motorcycle equipped with a 12V DC power socket (cigarette lighter) and aftermarket 12V electric exhaust cutout valves.
• Note: This kit is a control module and wiring accessory only. It does not include the physical metal exhaust pipes, exhaust valves, or muffler bodies.

MEASUREMENT CONFIRMATION

1. Voltage Check: Confirm your vehicle’s power outlet delivers standard 12V DC. (Do not use on 24V commercial trucks).
2. Plug Pin Compatibility: Review the connector plug shapes in the product image. Ensure the female plug on your existing electric exhaust valve motor matches the snap-lock waterproof pins on our wiring harness.

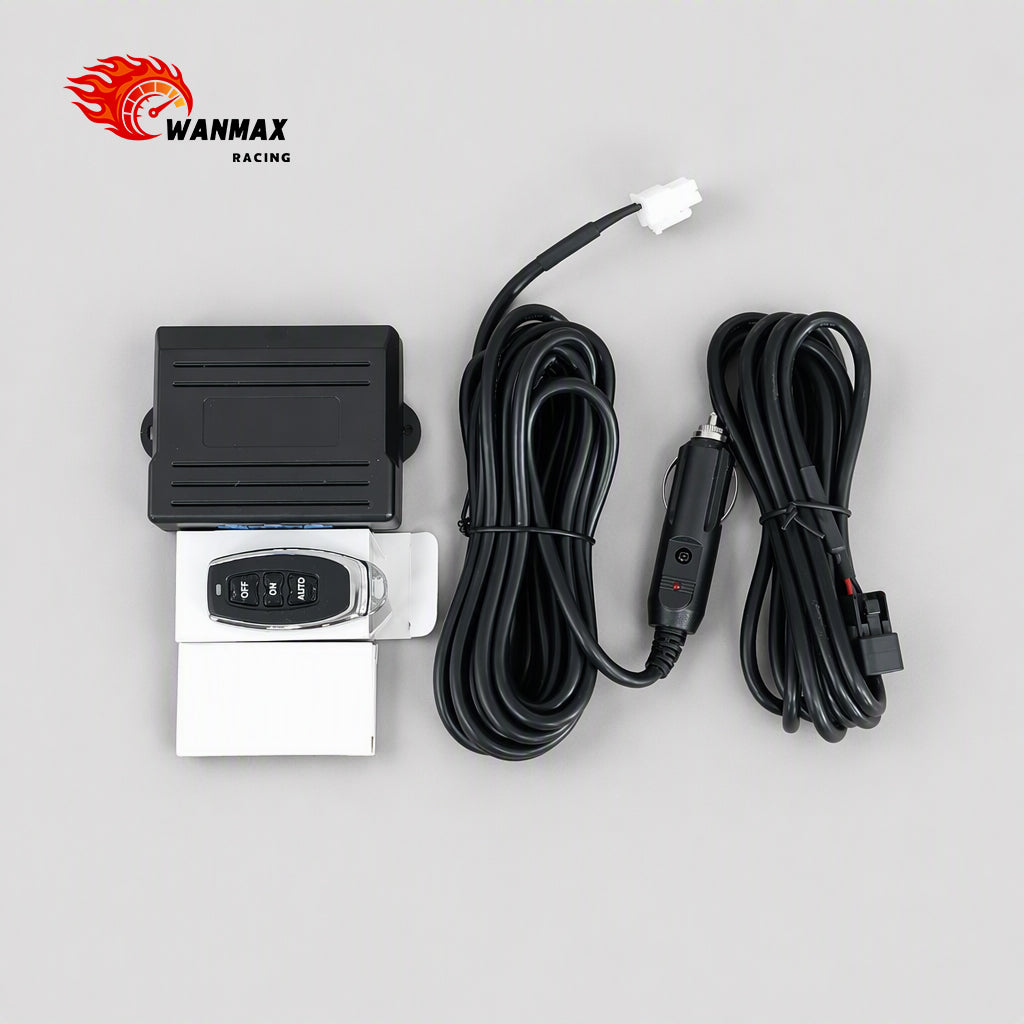

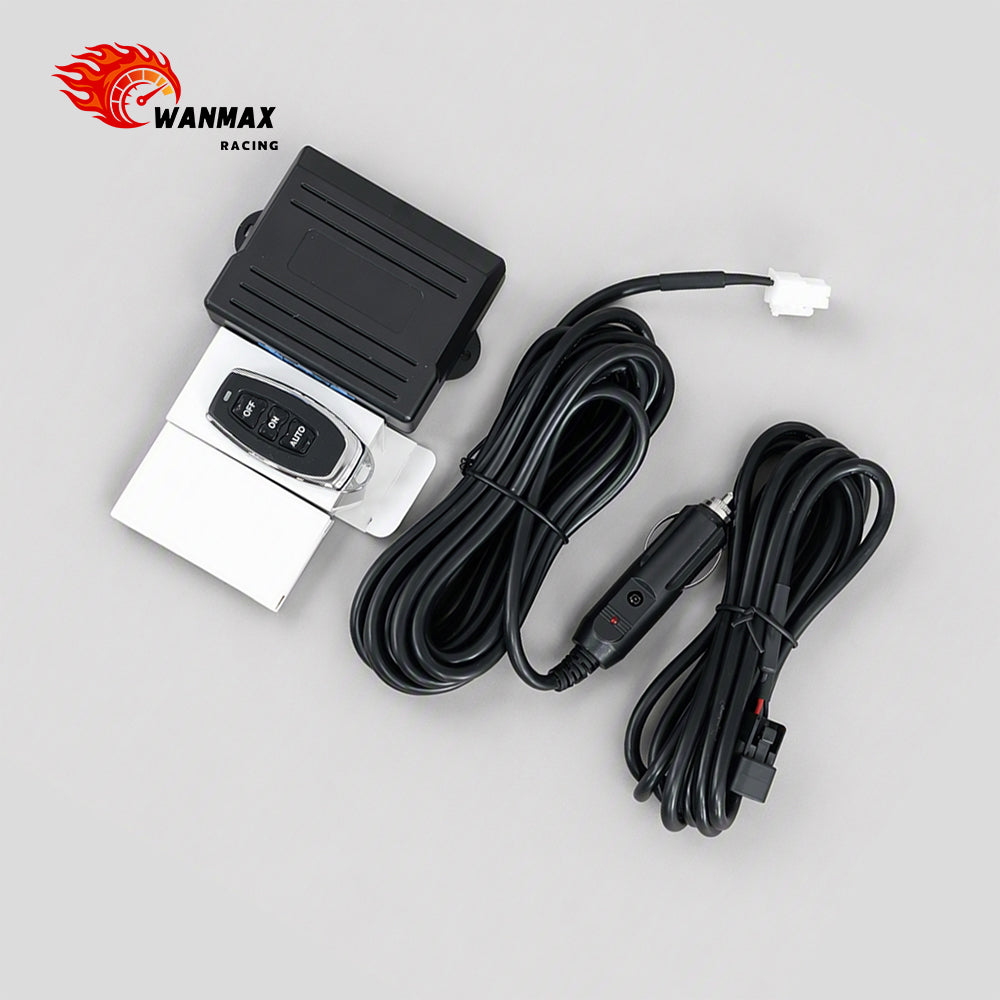

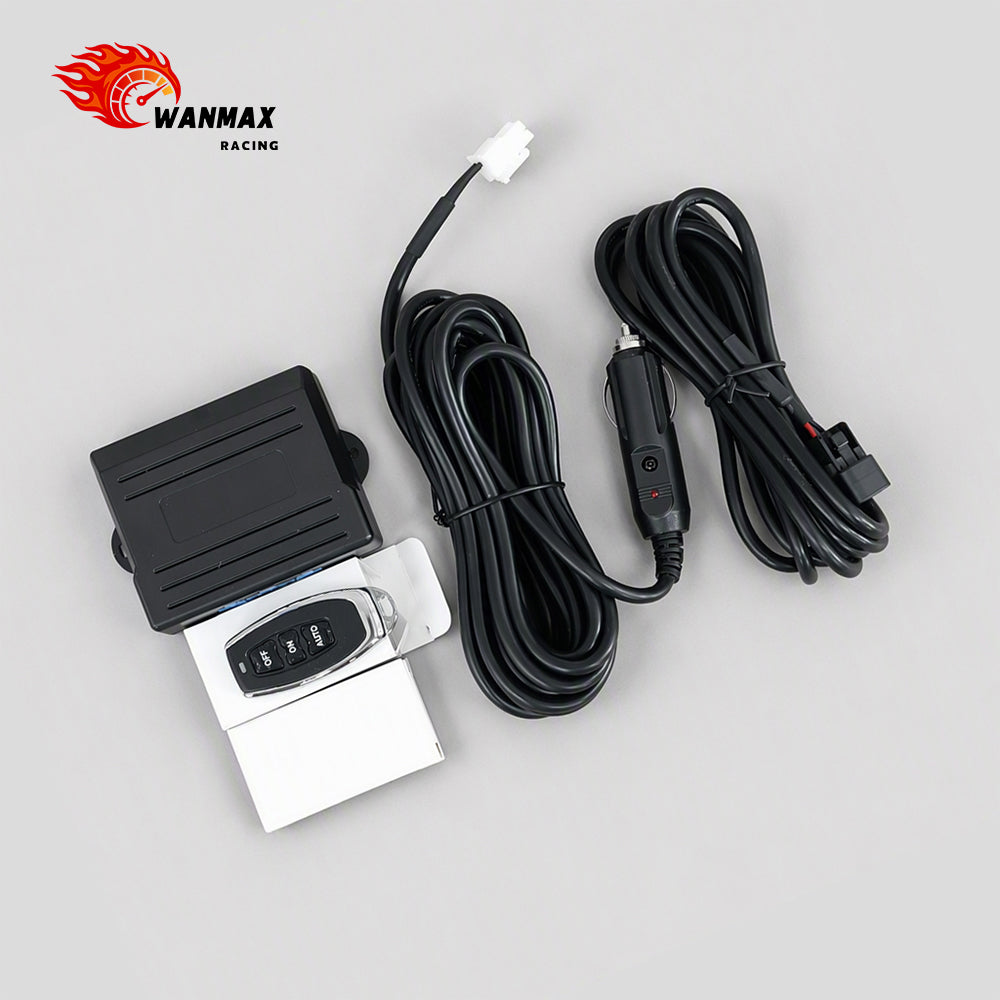

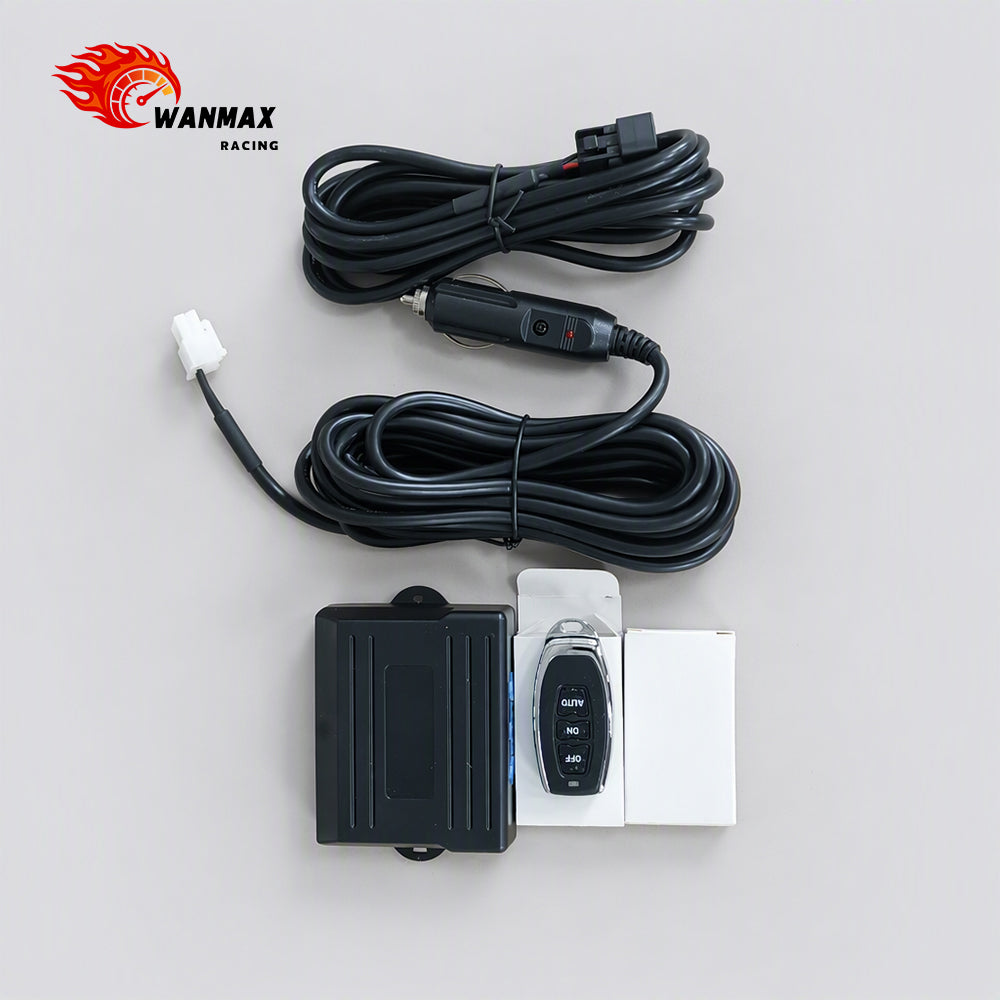

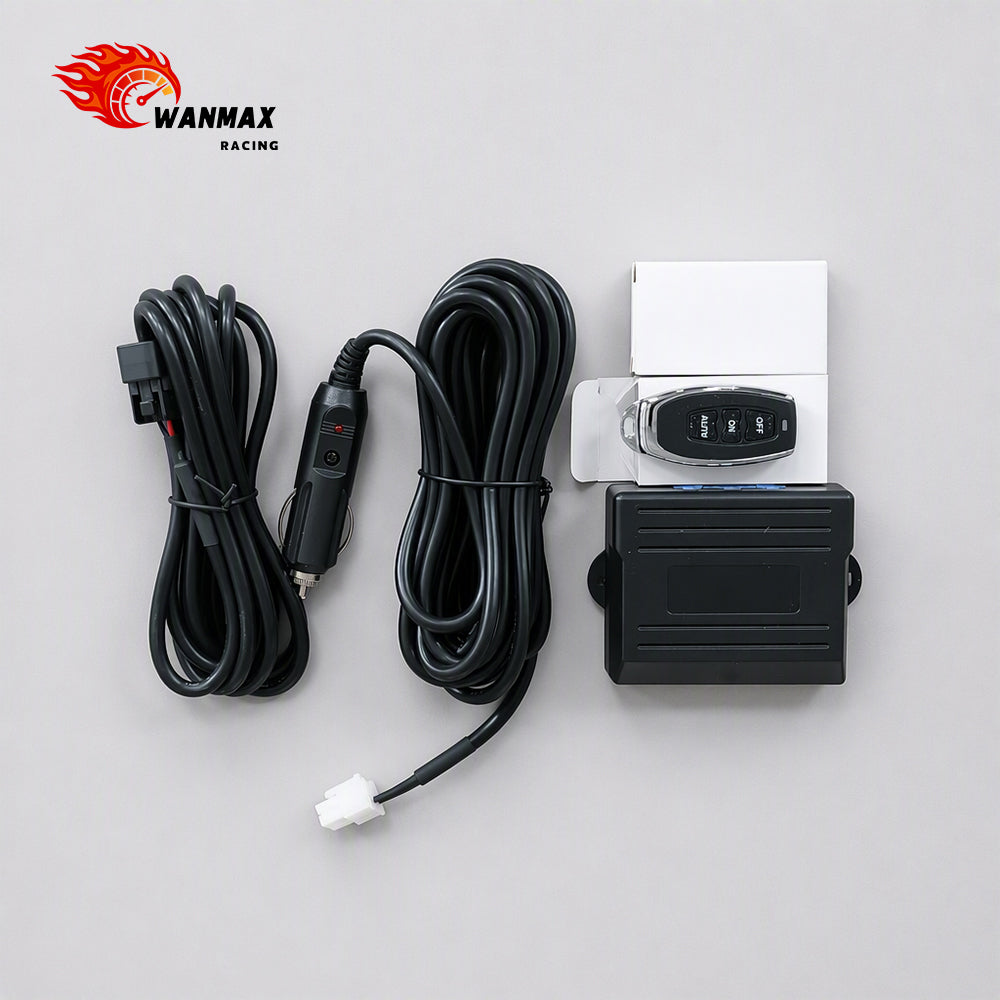

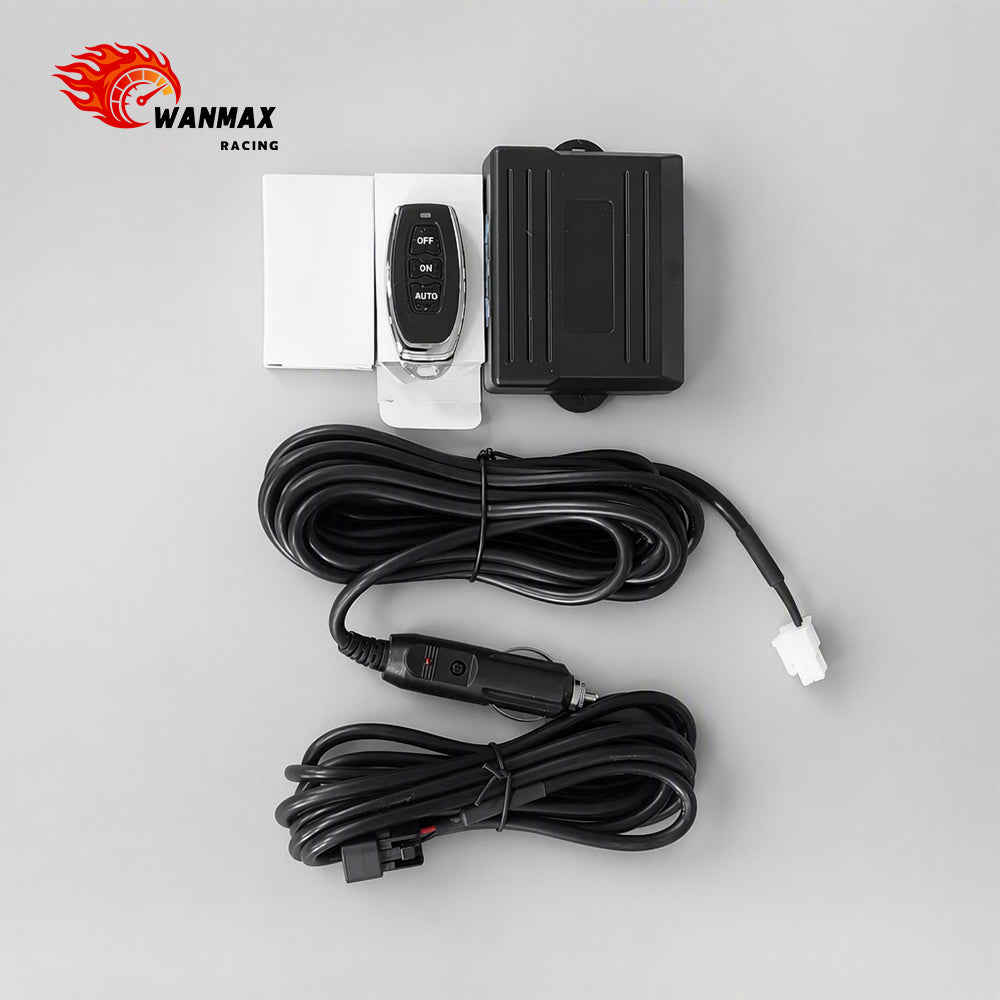

WHAT'S IN THE BOX

• 1 x Electronic Control Module (Receiver Box with attached main wiring)
• 1 x 3-Button Wireless Remote Controller
• 1 x 12V Cigarette Lighter Power Cable (Integrated with control box)
• 1 x Secondary Extension Wire Harness with Waterproof Plug Connector

INSTALLATION GUIDE & PRECAUTIONS

1. Module Placement: Position the black receiver box inside the vehicle cabin (e.g., under the dashboard, under a seat, or inside the trunk) to keep it fully protected from road debris and direct moisture.
2. Wire Routing: Route the output wiring harness from the cabin to the underside of the vehicle through a factory floor grommet.
3. Actuator Connection: Firmly snap the waterproof plug of the wiring harness into the corresponding connector on your electric exhaust valve motor.
4. Securing the Lines: Secure all loose wires tightly under the chassis using heat-resistant zip ties. Keep wires far away from spinning driveshafts and hot exhaust pipes.
5. Power Up: Plug the adapter into the 12V cigarette lighter outlet, start the vehicle, and press the remote buttons to test the system.

• Heat Hazard Warning: Never allow the black wire harness to touch the exhaust pipe or catalytic converter. Unprotected contact with high-heat components will melt the insulation and short-circuit the controller.
• Keep Control Box Dry: While the under-car plugs are waterproof, the main control box housing should remain inside the cabin dry and away from puddles or leaks.

TROUBLE-SHOOTING GUIDE

• Q: The LED indicator on the control box does not light up and the system has no power.
  • A: Check if the cigarette lighter socket is clean and the plug is pushed in completely. Check if the internal fuse inside the tip of the cigarette lighter plug has blown; unscrew the tip to inspect and replace if necessary.
• Q: The remote controller won't trigger the valve, but the box has power.
  • A: Check the remote control's battery. If the small indicator light on the remote is dim or stays off when pressed, replace the coin-cell battery. Ensure there are no major metal obstructions blocking the signal antenna of the box.
• Q: The controller clicks, but the exhaust valve doesn't move or only moves halfway.
  • A: Ensure the waterproof connector under the car is fully clipped in and free of corrosion. If the connection is clean, the issue may be carbon buildup jam-packing your mechanical exhaust valve flap. Spray the valve mechanics with WD-40 or carburetor cleaner to free up movement.
